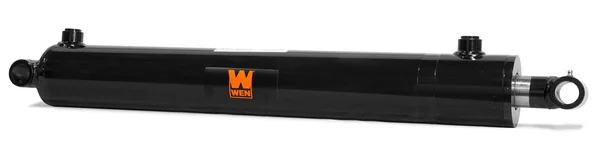

Wen WT2524 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 24-inch Stroke

Description

Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. The SAE-8 port (3/4 inch-16UNF) attaches easily to the hydraulic hose of your choice. With a 2.5-inch bore and a 24-inch stroke, this durable cylinder goes from a retracted length of 32 inches all the way out to an extended length of 56 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. With a 2.5-inch bore and a 24-inch stroke, this durable cylinder goes from a retracted length of 32 inches all the way out to an extended length of 56 inches. Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. The SAE-8 port (3/4 inch-16UNF) attaches easily to the hydraulic hose of your choice. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. Remember when you had a cylinder that lasted?

Key Features

• This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI.
• Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder.
• The SAE-8 port (3/4 inch-16UNF) attaches easily to the hydraulic hose of your choice.

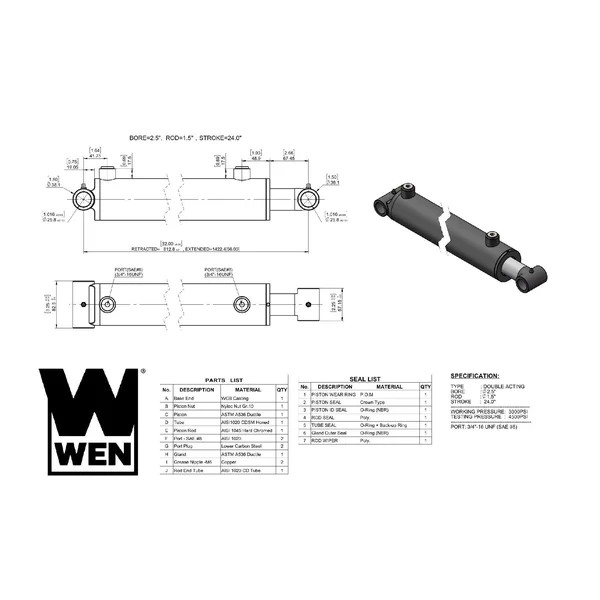

• With a 2.5-inch bore and a 24-inch stroke, this durable cylinder goes from a retracted length of 32 inches all the way out to an extended length of 56 inches.

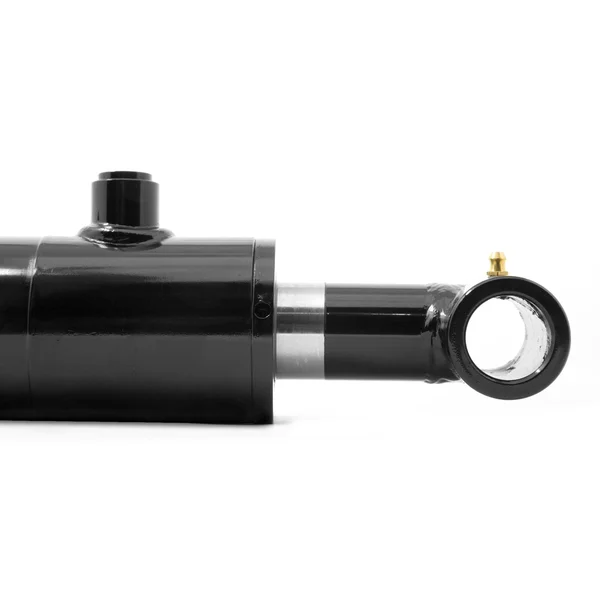

• This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston.
