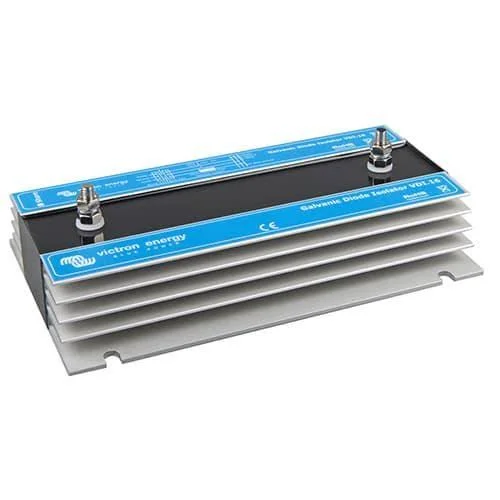

Victron Energy Galvanic Isolator VDI-16 A

Description

These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on. The voltage at which diodes conduct is about 1.4 Vdc. The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. Galvanic Isolator VDI-16, VDI-32 and VDI-64 The galvanic isolator prevents electrolytic corrosion. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit. It blocks low voltage DC currents that enter your boat via the shore power earth wire. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The isolator is installed directly behind your boat's 230V connection.

Key Features

• Galvanic Isolator VDI-16, VDI-32 and VDI-64 The galvanic isolator prevents electrolytic corrosion.
• The isolator is installed directly behind your boat's 230V connection.
• However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
• When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage.
• It blocks low voltage DC currents that enter your boat via the shore power earth wire.
• As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current.
