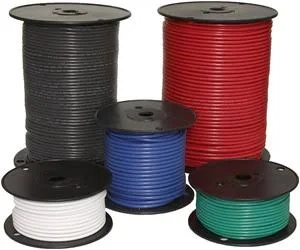

Stranded Hookup Wire (600 Volt) (Gauge: 12 - Length: 1000 ft., Color: Violet) Wire-ST6-12-07-1000

Name: Stranded Hookup Wire (600 Volt) (Gauge: 12 - Length: 1000 ft., Color: Violet) Wire-ST6-12-07-1000
Brand: Powerwerx
SKU: SKU-DCD7B9B131D5
Price: 60 CAD
Availability: InStock

SKU: SKU-DCD7B9B131D5

List Price: C$587.03

C$60.00 SAVE C$527.03 (90%)

Price includes all taxes

In Stock — Ready to Dispatch

Shipping calculated at checkout · Delivery timing is shown in the shipping policy
30-Day Returns · Eligibility rules apply
Secure Checkout · SSL encrypted payment

View shipping policy →

Quantity

Eligible items may be returned within 30 days. See the return policy for conditions.

Payment Method

Cash on Delivery — pay when your order is delivered.

Product Details

About this product

Description

Great for Hobbyist. Internal appliance and point to point electronic wiring. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test and is self-extinguishing. Stranded tinned copper. UL Listed, UL Style 1015. CSA Listed, CSA TEW. suited for Hobbyist. Conductor: Fully annealed tinned stranded copper per ASTM B-33 Insulation: -grade, color-coded PVC Temperature Range: -20癈 to +105癈 (-4癋 to +221癋) Compliances: UL Style 1015 - 105癈, CSA TR-64 - 90癈, CSA Type TEW, Designed to meet UL VW-1 Vertical Wire Flame Test, RoHS Compliant Applications: Internal wiring of electrical and electronic equipment. Internal wiring of panels and meters. Point-to-point wiring. Voltage Rating: 600 VAC Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max. Resistance (DC at 20癈) Ohm/per Nom. Weight Inch mm Inch mm 1000-ft Km LBS./1000 ft. KG/Km 10 105 30.1181 3.00.1811 4.60 1.08 3.55 41.71 61.89 12 65 30.0933 2.37.1563 3.97 1.72 5.64 27.85 41.33 14 41 30.0740 1.88.1370 3.48 2.73 8.96 19.25 28.58 16 26 30.0591 1.50.1220 3.10 4.45 14.6 13.71 20.34 18 16 30.0465 1.18.1094 2.78 6.77 22.2 9.84 14.60 20 10 30.0374 0.95.1004 2.55 11.2 36.7 7.58 11.24 22 7 30.0311 0.79.0941 2.36 18.1 59.4 6.21 9.21. Conductor: Fully annealed tinned stranded copper per ASTM B-33 Insulation: -grade, color-coded PVC Temperature Range: -20癈 to +105癈 (-4癋 to +221癋) Compliances: UL Style 1015 - 105癈, CSA TR-64 - 90癈, CSA Type TEW, Designed to meet UL VW-1.

Key Features

Passes VW-1 Vertical Flame Test and is self-extinguishing.
Conductor: Fully annealed tinned stranded copper per ASTM B-33 Insulation: -grade, color-coded PVC Temperature Range: -20癈 to +105癈 (-4癋 to +221癋) Compliances: UL Style 1015 - 105癈, CSA TR-64 - 90癈, CSA Type TEW, Designed to meet UL VW-1.
Voltage Rating: 600 VAC Gauge (AWG) Number of Strands Gauge of Strands (AWG) Conductor Diameter Finished Wire Diameter Max.
Internal appliance and point to point electronic wiring.
Weight Inch mm Inch mm 1000-ft Km LBS./1000 ft.
Resistant to moisture, oil solvents, and fungus.
