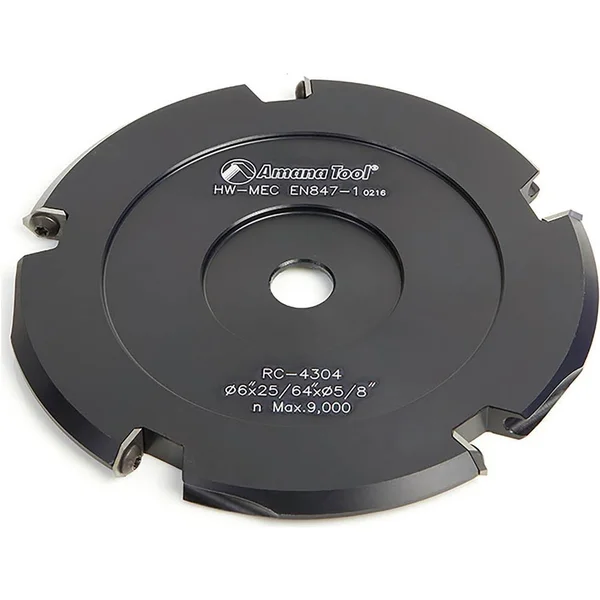

RC-4304, Amana 6x22 x 5T ACM 90 Insert Blade

Description

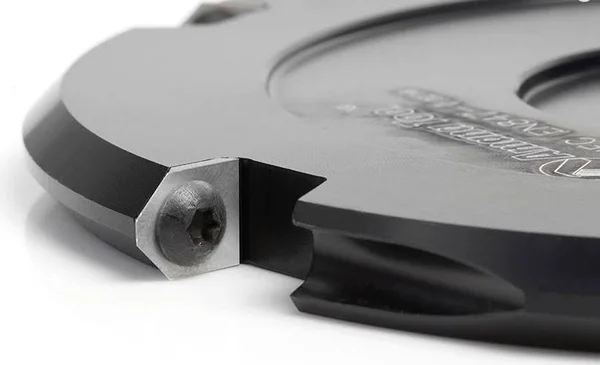

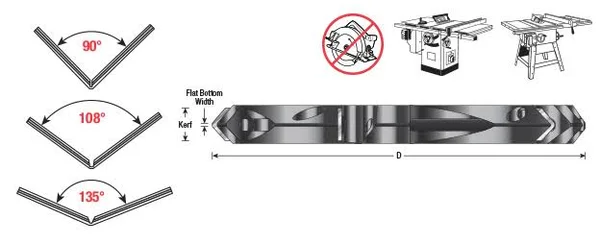

90o Double Edge V-Scoring 25/64′′ Wide, 0.090" Flat Bottom Width, 6′′ Dia x 5Tooth x 5/8′′ Bore V-Scoring blade designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as: Aluminum, Clay, Zinc & Wood Composite Panels Aluminum Composite Materials (ACM) Aluminum Composite Panel (ACP)* ALPOLIC Copper Composite Material (CCM) Alucobond Alupanel Dibond Durabond** e-panel Etalbond Phenolics Plastic/Acrylic Plexiglas Titanium Composite. Widely used for cladding many diverse exterior and interior applications. The long lasting durablility of the material makes it an choice for buildings, signage, displays, etc. Utilizes 4-sided carbide inserts. *ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. WARNING: This set requires a custom zero clearance throat plate. WARNING: Not to be used with portable saws. Replacement knives = RCK-48 $30.30 each. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage.

Key Features

• Widely used for cladding many diverse exterior and interior applications.
• *ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core.
• 90o Double Edge V-Scoring 25/64′′ Wide, 0.090" Flat Bottom Width, 6′′ Dia x 5Tooth x 5/8′′ Bore V-Scoring blade designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as.
• **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
• ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
• The long lasting durablility of the material makes it an choice for buildings, signage, displays, etc.
