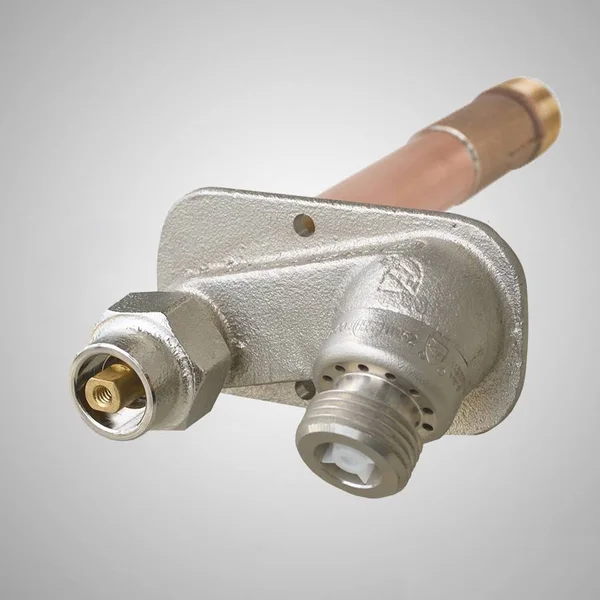

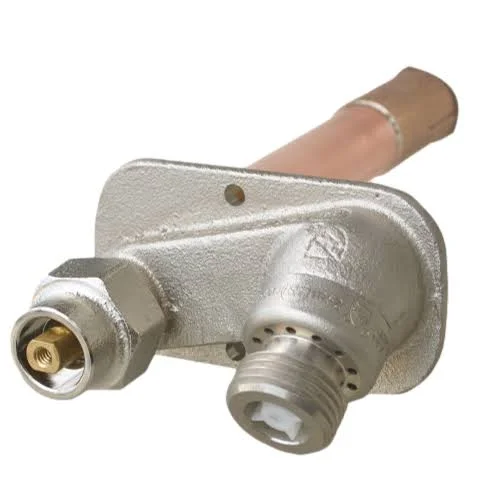

Prier C-534TCC 1-1/2x22 Loose Key Anti-Siphon Wall Hydrant 3/4x22 MPT x 1/2x22 FPT

Description

To assure freeze protection, the hydrant will drain even with the hose attached and under pressure. No special installation tools required. The C-534 has all of the features of the historically proven PRIER C-134, with additional protection of a self-draining anti-siphon backflow check valve. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. The PRIER C-534 provides a year round source of water to areas of structures that are subject to freezing temperatures. The C-534 has an extended vandal proof lockshield and comes with a loose key for operation. ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body. ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body, valve stem cap, seat and. The vacuum breaker/backflow preventor provides protection against cross-connection of the potable water supply, while venting to eliminate any vacuum.

Key Features

• The PRIER C-534 provides a year round source of water to areas of structures that are subject to freezing temperatures.
• The C-534 has all of the features of the historically proven PRIER C-134, with additional protection of a self-draining anti-siphon backflow check valve.
• To assure freeze protection, the hydrant will drain even with the hose attached and under pressure.
• The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing.
• ASSE 1052 and C-UPC approved Double check valve and anti-siphon vacuum breaker Drains automatically with hose attached Short valve stem cap for smaller profile in box Integral cast flange with built-in drainage pitch Solid brass body.
• The vacuum breaker/backflow preventor provides protection against cross-connection of the potable water supply, while venting to eliminate any vacuum.
