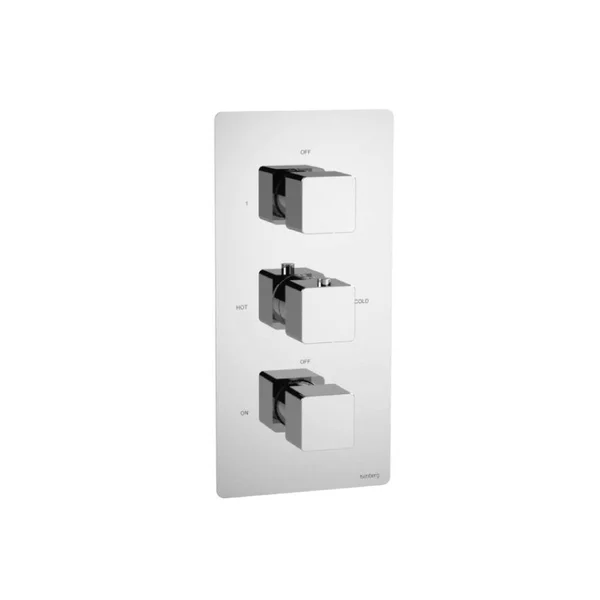

Isenberg 196.4501PN 3/4x22 Thermostatic Valve 3 Output with Volume Control and Trim Shared Port Operation Polished Nickel

Description

Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles. The trim plate is used to cover the wall and has markings for ON/OFF, 1/2/OFF and HOT/COLD for temperature control handle and volume control handles. Also, the valve must be installed vertical and not at an angle. Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 inches which is properly covered by the trim plate. Trims - The trim comprises of well finished trim plate and handle knobs. This will ensure that the trim plate will cover the cut out hole in the wall. Any *4501 series trim can be used with this valve. 3/4" Thermostatic Valve - 3 Output with Volume Control and Trim - Shared Port Operation The 196.4501 is a thermostatic valve with NPT connection and two inlets for hot and cold water separately and 3 outputs with integral volume control functionality. In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40 inches). This product has three outputs and 2 outputs can be activated simultaneously as follows: Top Handle - Position 1- Output 1 active Top Handle - Position 2- Output 2 active Top Handle - Position OFF- Output 1 and 2 deactivated Bottom Handle - Position ON. With the help of this ring, temperature of the water is regulated. The valve has a flow rate of 13.0 GPM @ 60 PSI.

Key Features

• Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
• As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 and 3.44.
• Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 inches which is properly covered by the trim plate.
• Trims - The trim comprises of well finished trim plate and handle knobs.
• In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40 inches).
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
