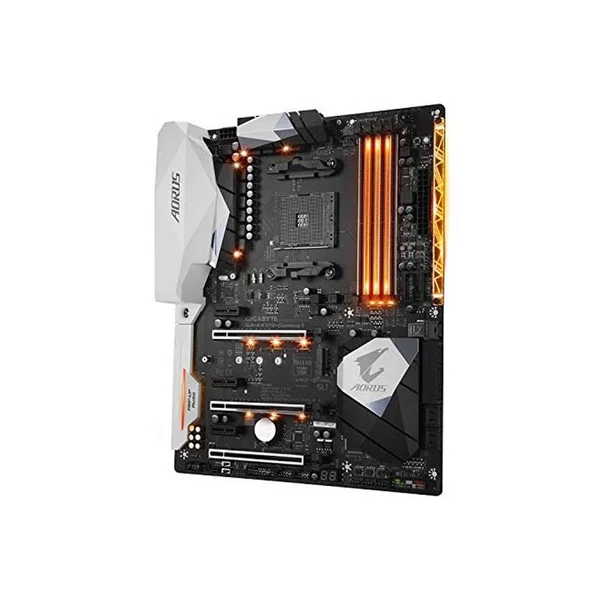

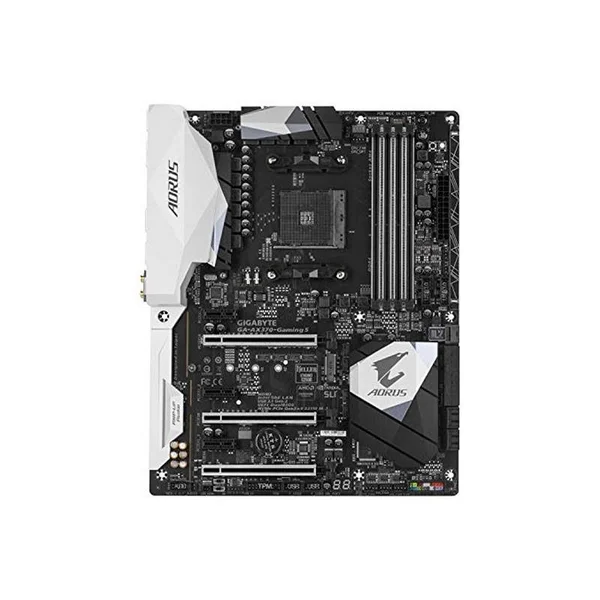

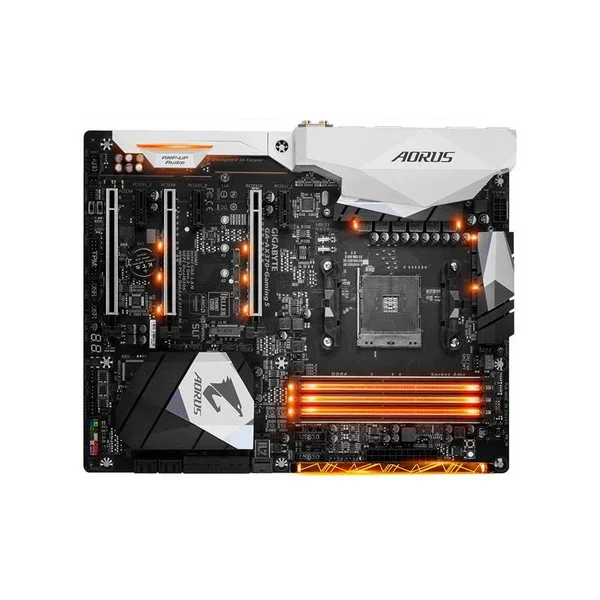

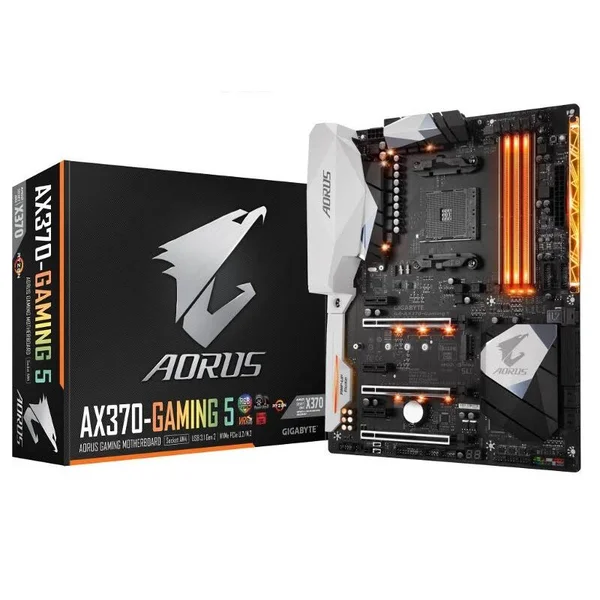

Gigabyte GA-AX370-Gaming 5 AMD X370 Socket AM4 ATX Motherboard

Description

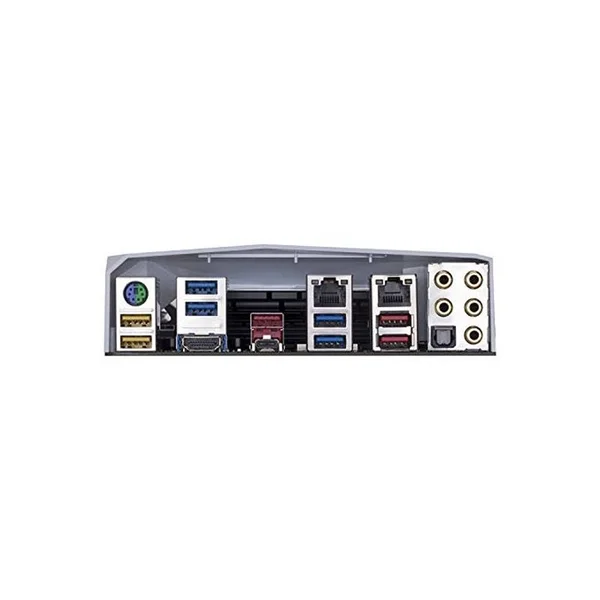

The board has four DDR4 slots for a maximum of 64 GB RAM with up to 3200 (O C) MHz. As an optical highlight, the GA-X370-gaming 5 also has an integrated RGB-LED lighting, which can be varied depending upon the requirement.This text is machine translated. USB 3.1 or USB 3.1 Gen 2 reached maximum speeds of up to 10 Gbit/s per port. For data carrier, such as SSDs and hard disks, the Board has eight SATA III ports (including RAID support), as well as each and 2 and M.2 slot, the enormously high speeds of up to 32 Gbit/s can reach. You can M.2 SSDs from 42 up to 110 mm length should be used and in addition, the advanced NVM express protocol supported, designed especially for high-parallel data carrier requests of modern PCIe SSDs has been optimized. The I/O panel is in addition to two Gigabit LAN ports and an HDMI connection but also with a USB 3.1 Type-C connection. The internal connections include two header for USB 3.0 and USB 2.0 for each with 4 ports as well as TPM, Clear CMOS, COM port and LPT-header. The new USB type-C connection is especially thin and can be inserted on both sides. As the X370-motherboard supports the Gigabyte GA-X370-gaming 5 In addition, AMD's Crossfire and NVIDIA's SLI technology for multi-GPU setups. The Gigabyte GA-X370-gaming 5 ATX mainboard has three fast PCIe x16 slots, as well as three PCIe-x1 slots for other expansion cards.

Key Features

• The Gigabyte GA-X370-gaming 5 ATX mainboard has three fast PCIe x16 slots, as well as three PCIe-x1 slots for other expansion cards.
• The internal connections include two header for USB 3.0 and USB 2.0 for each with 4 ports as well as TPM, Clear CMOS, COM port and LPT-header.
• As the X370-motherboard supports the Gigabyte GA-X370-gaming 5 In addition, AMD's Crossfire and NVIDIA's SLI technology for multi-GPU setups.
• You can M.2 SSDs from 42 up to 110 mm length should be used and in addition, the advanced NVM express protocol supported, designed especially for high-parallel data carrier requests of modern PCIe SSDs has been optimized.
• For data carrier, such as SSDs and hard disks, the Board has eight SATA III ports (including RAID support), as well as each and 2 and M.2 slot, the enormously high speeds of up to 32 Gbit/s can reach.
• The board has four DDR4 slots for a maximum of 64 GB RAM with up to 3200 (O C) MHz.
