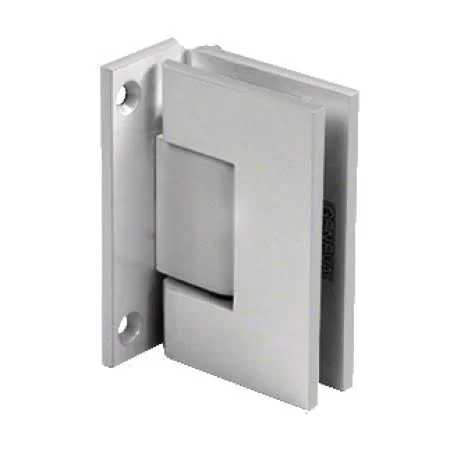

CRL Vct037sc Satin Chrome Wall Mount Victoria Series HINGE, Silver

Description

SPECIFICATIONS: Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position) Closing Type: Self-Centering when within 15 Degree of Closed Position Cut-Out. Cut-out dimensions for CRL hinges may not match those of other brands. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) 39" (1 m) width the two hinges will hold up to 140 lbs. NOTE: Do not use three hinges. Use only the template included with this hinge. They also deliver increased self-centering force and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. CRL Victoria Series Hinges have the ability of supporting wider heavier doors with a maximum door weight of 140 lbs. Maximum two hinges per door. These hinges utilize an integrated stiffening beam to minimize clamping plate flex resulting in exceptional holding power. Glass fabrication is required. Stocked in six popular finishes with custom finishes available. (64 kg) and a maximum door width of 39" (1 m) using only two hinges. This produces a frameless aesthetic by reducing the amount of hardware needed. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.

Key Features

• For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass.
• SPECIFICATIONS: Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position) Closing Type: Self-Centering when within 15 Degree of Closed.
• CRL Victoria Series Hinges have the ability of supporting wider heavier doors with a maximum door weight of 140 lbs.
• Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) 39" (1 m) width the two hinges will hold up to 140 lbs.
• (64 kg) and a maximum door width of 39" (1 m) using only two hinges.
• They also deliver increased self-centering force and the heat-treated stainless steel springs produce enhanced durability.
