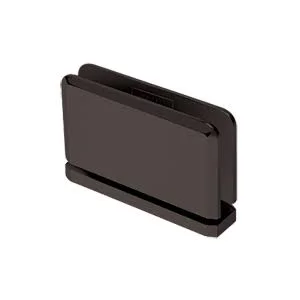

CRL Srpph01bl Black Senior Prima 01 Series Top or Bottom Mount Hinge

Description

Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions Senior and Junior Prima Hinges are patented (Patent No. Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall enabling clearance for towel bars and other projections. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. NOTE: Must order SRHAB01 Senior Adaptor Block separately. SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. (66 kg) with a maximum door width of 36" (914 mm). Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs. SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. (28 kg) with a maximum door width of 28" (711 mm).

Key Features

• SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs.
• (66 kg) with a maximum door width of 36" (914 mm).
• SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure.
• JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs.
• (28 kg) with a maximum door width of 28" (711 mm).
• Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
