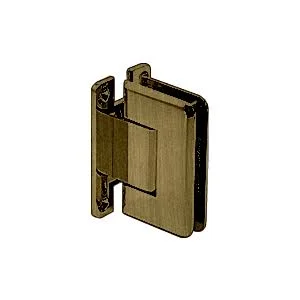

CRL P1n337abr Antique Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate HINGE, Gold

Description

SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Cut-out dimensions for CRL hinges may not match those of other brands. Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. Once the door is hung simply loosen the Allen set screws and turn the door to the desired closed position. Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. (36 kg) with a maximum door width of 28" (711 mm). Closing Type: Self-Centering when within 15 degree of closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.

Key Features

• (36 kg) with a maximum door width of 28" (711 mm).
• (54 kg) with a maximum door width of 32" (813 mm).
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
