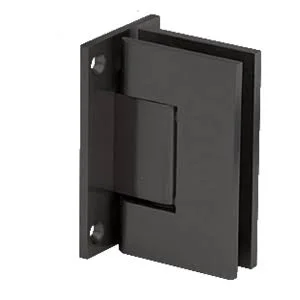

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

In addition Custom Pivot Pins are available to accommodate "off-angle" installations. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. The Pin can be rotated (not flipped upside down) to activate the other side. Use only the template included with this hinge. GENP1N) are available to accommodate "off-angle" installations. The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). One side of the Pin is marked 90 Degrees. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. (54 kg) with a maximum door width of 32" (813 mm). Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into. Custom Pivot Pin: Custom Pivot Pins (Cat. Standard Geneva Hinges come with the 90 Degrees side activated.

Key Features

• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
