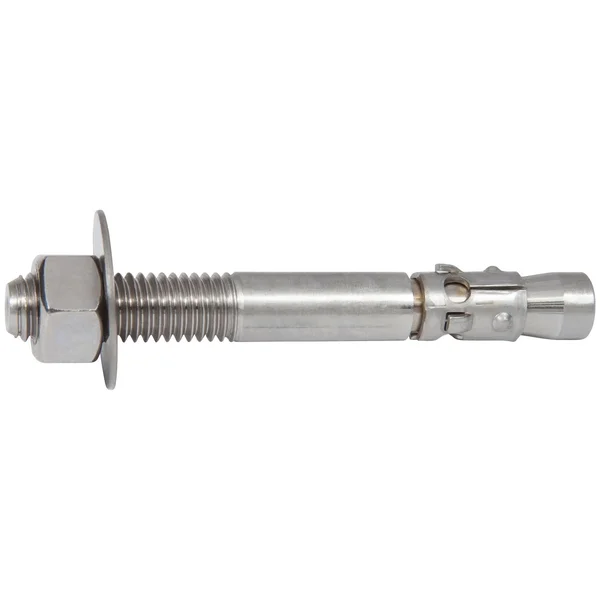

CONFAST American Made 3/8x22 x 3-3/4x22 316 Stainless Steel Wedge Anchor (50 per Box)

Description

The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Therefore, the anchor must be installed so that a minimum of 1-1/2in of the anchor is embedded into the concrete. Applications the anchor is made from 316 stainless steel and meets the buy america act baa. Hole diameter/bit diameter the anchor requires a 3/8in hole to be drilled in the base material concrete only. The 3/8in diameter anchor requires the hole in the fixture to be 1/2in. This will ensure that the minimum embedment of 1-1/2in will be met. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Length anchor the length of the anchor is 3-3/4in thread length the length of the threads on the anchor is 1-1/4in in length. Environment the anchor is designed for use in a submerged/chemicals environment. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-1/2in. This anchor is designed for use in concrete only, and should never be used in block or brick base material. Edge distance it is very important not to install the anchor any closer than 1-7/8in from an unsupported edge of the concrete. Minimum embedment the minimum anchor embedment into the concrete is 1-1/2in. Applications the anchor is made from 316 stainless steel and meets the buy america act baa. Diameter of anchor the diameter of the anchor is 3/8in.

Key Features

• Minimum embedment the minimum anchor embedment into the concrete is 1-1/2in.
• Diameter of anchor the diameter of the anchor is 3/8in.
• Therefore, the anchor must be installed so that a minimum of 1-1/2in of the anchor is embedded into the concrete.
• Hole diameter/bit diameter the anchor requires a 3/8in hole to be drilled in the base material concrete only.
• Applications the anchor is made from 316 stainless steel and meets the buy america act baa.
• Length anchor the length of the anchor is 3-3/4in thread length the length of the threads on the anchor is 1-1/4in in length.
