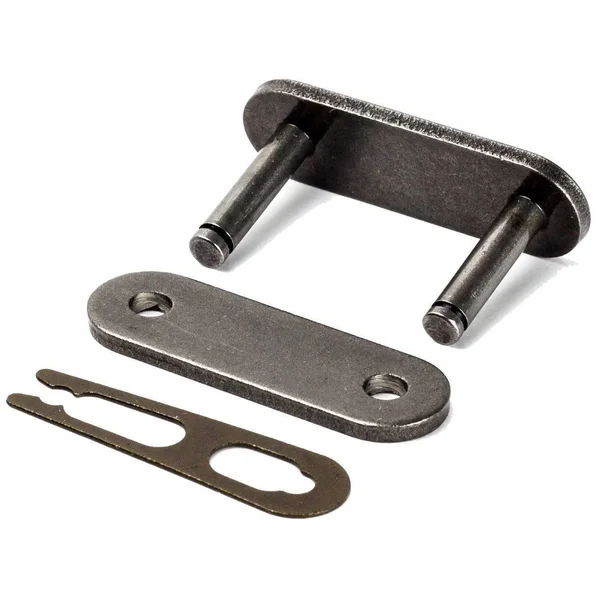

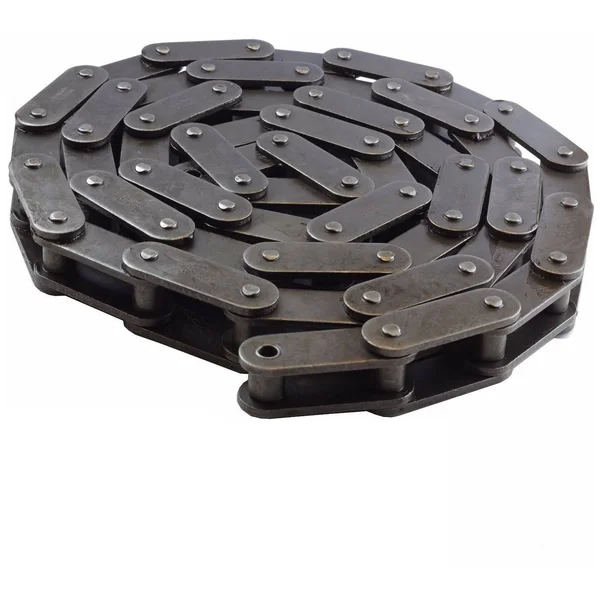

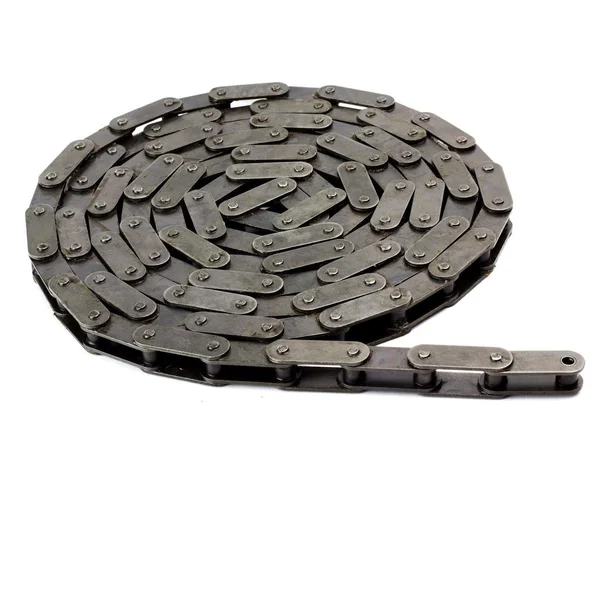

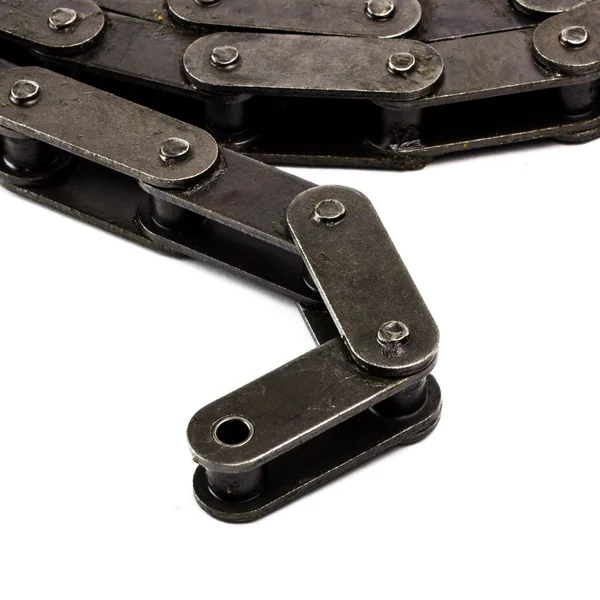

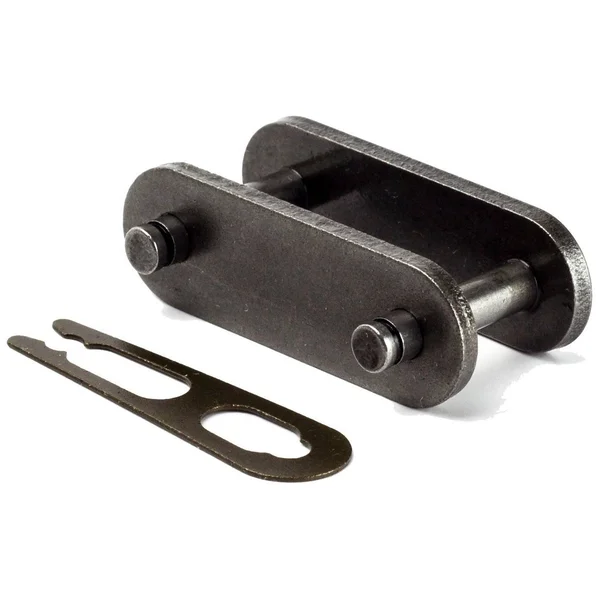

#C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link

Description

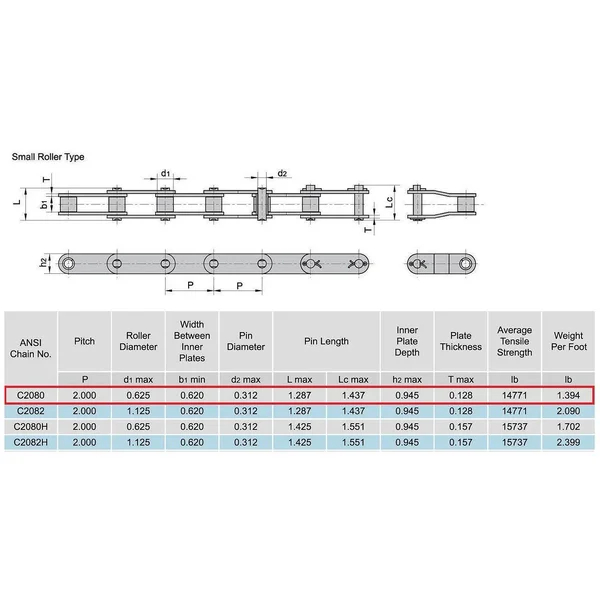

#C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link Pitch Size: 2.000 Inch Roller Diameter: 0.625 Inch Width Between Inner Plates: 0.620 Inch Pin Diameter: 0.312 Inch Pin Length L Max: 1.287 Inch Pin Length Lc Max: 1.437 Inch Inner Plate Depth: 0.945 Inch Plate Thickness: 0.128 Inch Average Tensile Strength: 14771 lb Material: Carbon Steel Length: 10 Feet Weight Per Foot: 1.394 lbs All of our chain products have gone through stringent process measures for Quality! This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the life of the chain. Assembled chains are then dipped in a hot lubricant.

Key Features

• They are pretested to support and maintain the expected load the chain will see when in use.
• Solid hardened and shot peened precision rollers are standard on most of our chains.
• The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth.
• #C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link Pitch Size: 2.000 Inch Roller Diameter: 0.625 Inch Width Between Inner Plates: 0.620 Inch Pin Diameter: 0.312 Inch Pin Length L Max: 1.287 Inch Pin Length Lc Max: 1.437 Inch Inner.
• This includes heat treatment, which ensures the optimum ware life and toughness for all component parts.
• During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life.
