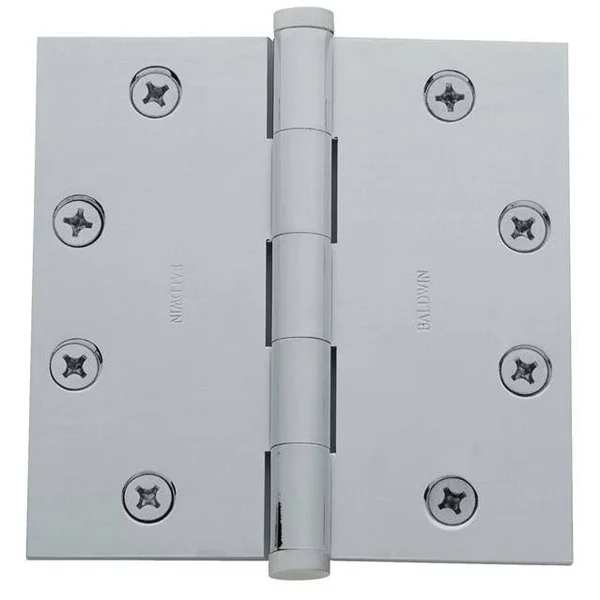

Baldwin Hinge 4.5 x 4.5 Sqr Corner NRP DORB

Description

Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion. Pins can be removed by unthreading each finial and tapping the pin upward from the bottom of the barrel. Hinges are furnished standard with button design finials. Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof. This special application is used when the hinge barrel is exposed to the exterior side of a building (Reverse Bevel Door Conditions). Hinge supplied with non-removable pin to prevent removal of pin when the door is in a closed position. Supplied with non-removable pin Extruded brass, full mortise hinges are machined for precise installation and smooth movement. Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness. Square Corner Hinge, 4.5" x 4.5". All full mortise hinges are supplied standard with appropriate size wood. Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear. Hinges manufactured from solid brass extrusions have two inherent properties: exceptional strength and precision tolerances. Supplied with fixings. Baldwin’s extruded hinges are machined from a solid brass bar to exact tolerances to ensure an even wear between each knuckle. Supplied in Singles. The pin “floats” within the barrel of the hinge, yet is held in a stationary position. A stainless s.

Key Features

• Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness.
• Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof.
• Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear.
• Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability.
• Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion.
• All full mortise hinges are supplied standard with appropriate size wood.
