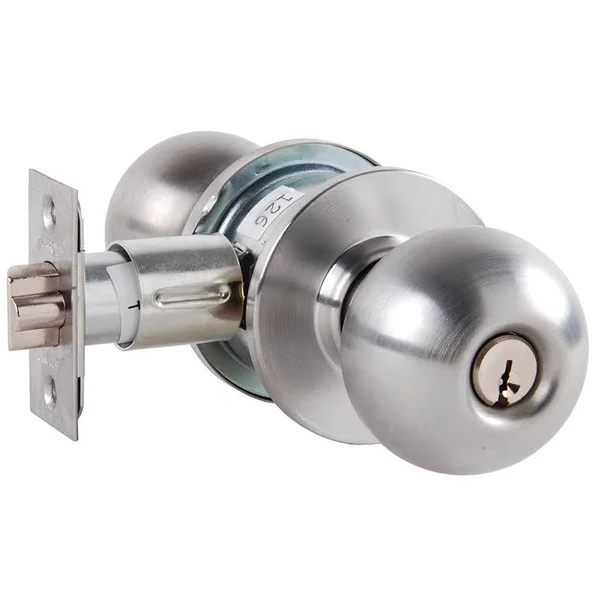

Arrow MK12TA 26D Cylindrical Lock

Description

Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). Backset – 2-3/8" (60.32mm) standard. Handing– Reversible. Latch – Brass with 1/2" (12.7mm) throw. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Available in Schlage CS keyway and other competitive keyways. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm). Supplied with two 5 pin brass keys for stock. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in. Latch Front – Brass, bronze or stainless steel. Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Strike – Brass, bronze or stainless steel. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Latch housing is steel, with zinc dichromate finish for corrosion resistance.

Key Features

• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• Requires standard 2-1/8" (53.97mm) bore through door.
• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
