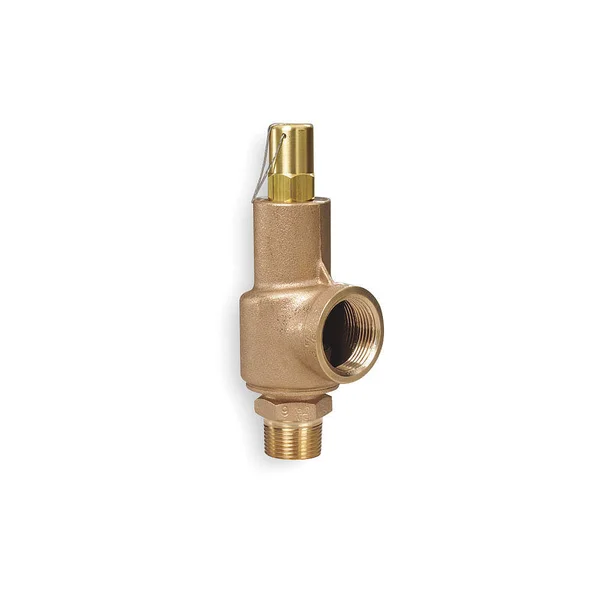

Aquatrol - 89F2-225 - Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type

Description

Range 0 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN. This listing is for each. This AQUATROL safety relief valve features single-ring blowdown to assure quick, accurate reseating when opening/popping. Model includes sealed and closed hex cap. For use in air compressors, pressurized production lines, and tanks. This listing is for each. Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 2 in Outlet Size 2 1/2 in Factory Set Pressure 225 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 11 1/8 in Application Air, Gas Seat Material Bronze Spring Material 316 Stainless Steel Temp. Range 0 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN. This AQUATROL safety relief valve features single-ring blowdown to assure quick, accurate reseating when opening/popping. Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 2 in Outlet Size 2 1/2 in Factory Set Pressure 225 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 11 1/8. Model includes sealed and closed hex cap. For use in air compressors, pressurized production lines, and tanks.

Key Features

• For use in air compressors, pressurized production lines, and tanks.
• Range 0 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN.
• This AQUATROL safety relief valve features single-ring blowdown to assure quick, accurate reseating when opening/popping.
• Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 2 in Outlet Size 2 1/2 in Factory Set Pressure 225 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 11 1/8.
• This listing is for each.
• Model includes sealed and closed hex cap.
